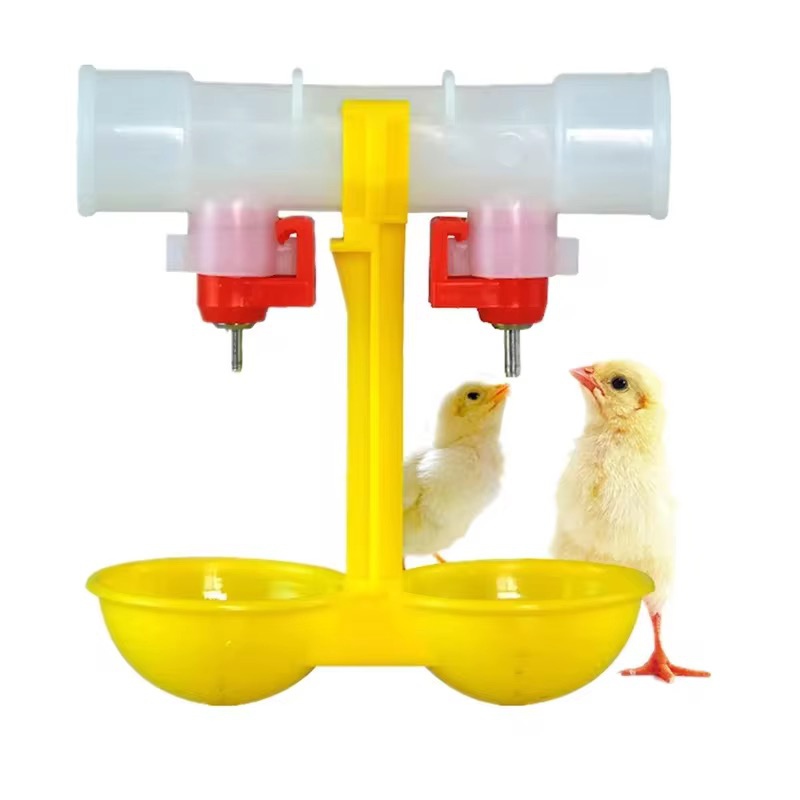

Chicken integrated hanging cup automatic water dispenser

The chicken integrated hanging cup automatic water dispenser is a specially designed drinking water device for chickens. The following is an introduction to it:

Structure and Principle

Structure: It usually consists of an integrated hanging cup, shell, back cover, water control rod, sealing gasket, valve body, valve stem, steel ball and other components.

Livestock breeding equipment - Integrated hanging cup automatic water dispenser for chickens

Principle: Use pressure control or float valve device to achieve automatic water supply. When the chicken pecks the nipple of the water dispenser or triggers the relevant device, the valve stem moves, the steel ball opens, and water flows out of the valve body for the chicken to drink; When the chicken stops drinking water, the device resets, and under pressure or the action of the float, the valve closes, stopping the water supply, thus achieving the purpose of automatically controlling the water volume and maintaining the water level.

advantage

Sanitary and water-saving: The water dispenser pipeline system has good sealing performance, and the water is not directly exposed in the chicken coop, which can prevent dust and pathogenic bacteria from entering the water and reduce cross infection caused by drinking water in the chicken flock, which is beneficial for epidemic prevention in the chicken flock. At the same time, water can be supplied according to the actual drinking water consumption of chickens, avoiding water waste and achieving water-saving effects.

Easy to use: Easy to install, usually using snap rings or other methods for quick and secure installation. The design comes with a hanging cup, and the reliable groove can catch dripping water, keeping the chicken coop dry and hygienic, without the need for additional water collection devices.

Uniform water discharge: Some products can achieve 360 ° uniform water discharge, allowing chickens to easily drink water from different angles. The water flow design technology can maintain a stable water flow rate under a wide range of water pressure conditions, meeting the drinking water needs of chickens.

Strong practicality: The external shell of the product is generally made of materials with good comprehensive performance such as PP, ABS, etc., which have excellent toughness, oxidation resistance, and molecular stability. Stainless steel parts are usually made of three series stainless steel, which has good anti magnetization, anti rust, and corrosion performance, and is designed to have a long service life.

type

Nipple type integrated hanging cup automatic water dispenser: With the nipple water dispenser as the core, the chicken triggers drinking by pecking at the nipple. This type of water dispenser has good water tightness and can greatly reduce the risk of actual infection in chicken flocks. However, it requires high water quality and requires the installation of a filter screen at the front end. Additionally, chickens should not be used within 20 days after their beaks are severed.

Prazon style integrated hanging cup automatic water dispenser: generally composed of a drinking bowl, a movable bracket, a spring, a sealing pad, a main water pipe, an inlet pipe, etc. The water is visible and easy to water for chicks. It is relatively cheap and rarely malfunctions, but it is relatively easy to sprinkle water. Sometimes the chicken will wet the chicken coop when touched, and it is not easy to clean. It needs to be disassembled for thorough cleaning.

Installation and maintenance

Installation: The installation height should be adjusted according to the size and variety of the chicken. Generally, it is advisable for the chicken to easily reach the water spout to avoid being too high or too low, which may affect the normal drinking water of the chicken. It can be installed in a suitable position in the chicken cage, such as on the cage frame or on one side of the cage, to confirm that the water dispenser is stable and easily accessible to the chickens.

Maintenance: Farmers need to check the water level and flow of the water dispenser every day to confirm its normal water supply. If any leaks, blockages, or other malfunctions are found, they should be repaired or replaced in a timely manner. Every once in a while, the water dispenser should be thoroughly cleaned using mild cleaning agents and clean water to thoroughly clean all components. Then, use a clean towel to dry or air dry before installation and use. To prevent the growth of substances and viruses, it is necessary to regularly disinfect the water dispenser, use specialized disinfectants to disinfect according to the instructions, and rinse thoroughly with clean water after disinfection to avoid residual disinfectants causing harm to poultry.
