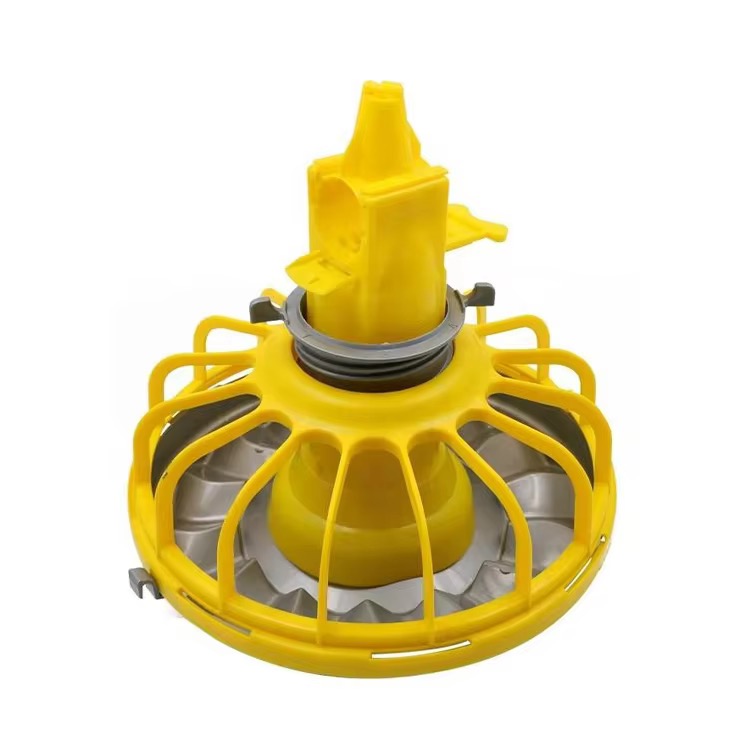

Automatic Poultry Feeder Pan

The automatic feeding trays for chickens, ducks and geese are automated equipment used in poultry farming, aiming to improve feeding efficiency, reduce labor costs and ensure the freshness of the feed. The following is a detailed introduction to the automatic feeding trays for chickens, ducks and geese:

I. Product Types and Structures

Floor-mounted Automatic Feed Refilling Trays for Poultry Farming

Structure: It includes a motor, a coupling box, a suspension rod, a distributing funnel, a hopper and a suspension column, etc. A distributing pipe is set at the bottom of the hopper. The distributing pipes are distributed in a shape like the Chinese character "八" (ba, which means eight in Chinese), inserted into the distributing funnel and fixedly connected. A support column is set at the bottom end of the distributing funnel. A distributing pipe is set below the suspension rod. One end of the distributing pipe extends into the interior of the distributing funnel, and the other end extends into the interior of the coupling box.

Function: The coupling is driven by the motor to drive the feeding auger inside the distributing pipe to rotate, transporting the feed in the distributing funnel to the distributing barrel, and then the feed in the distributing barrel falls into the feed tray.

Conical Cylinder Feeding Trays

Structure: It includes a No. 1 conical cylinder, a No. 2 conical cylinder, an arc-shaped baffle, positioning bolts, a threaded rod, etc. The horizontal angles of the No. 1 conical cylinder and the No. 2 conical cylinder are different. They are connected by threads through the positioning bolts and the threaded rod, so that the height of the No. 1 conical cylinder can be adjusted.

Function: The height of the No. 1 conical cylinder can be adjusted by using the threaded rod to avoid the accumulation and blockage of feed particles. At the same time, under the action of the torsion spring and the arc-shaped rotating shaft, the arc-shaped baffle can automatically close the upper opening of the No. 1 conical cylinder after feeding the feed into the No. 1 conical cylinder, preventing external sewage or other sundries from entering.

Chicken Feed Trays with a Cover Plate and a Pedal

Structure: It includes a body, a feeding trough, a cover plate, a pedal, a supporting device, etc. A pedal is rotationally connected to the second shaft installed on the body. By stepping on the pedal, the pedal drives the supporting device to move vertically to open the cover plate covering the feeding trough.

Function: When chickens eat, they step on the pedal, and the pedal drives the supporting device to move vertically upward to drive the cover plate to open the feeding trough. After the meal, the chickens leave the pedal, and the cover plate automatically covers the feeding trough by its own weight. It realizes the purpose that chickens can automatically open or close the feeding trough, avoiding manual operation by the breeders and reducing the labor intensity.

II. Product Features and Advantages

Automated Feeding: Reduces the frequency of manual feed addition, reduces labor intensity and improves farming efficiency.

Uniform Feed Supply: Ensures that each poultry can obtain an even amount of feed, reducing the stress response caused by competing for food.

Reduced Waste: Reduces the scattering of feed on the ground, improves the utilization rate of feed and reduces farming costs.

Easy to Clean: The structure is easy to disassemble and clean, helping to maintain the hygiene of the feeding environment.

Space Saving: In some designs, such as the floor-mounted automatic feed refilling trays for poultry farming, the hopper is fixed on the roof of the poultry house, saving the floor space of the poultry house.

III. Precautions for Use

Regular Cleaning: Clean the feed tray at least once a week to prevent the feed from getting moldy or breeding bacteria.

Moisture-proof and Sun-proof: Plastic materials should avoid being exposed to the sun for a long time, and metal materials should be protected from water accumulation and corrosion.

Safety Inspection: Regularly check components such as the discharge port and the sealing ring to ensure that there is no damage or blockage.
