Pig water line regulator and accessories

Pig water line regulators and accessories play an important role in modern pig farms, as they confirm that pigs can obtain clean drinking water stably and safely. The following is a detailed introduction to the water line regulator and accessories for pigs:

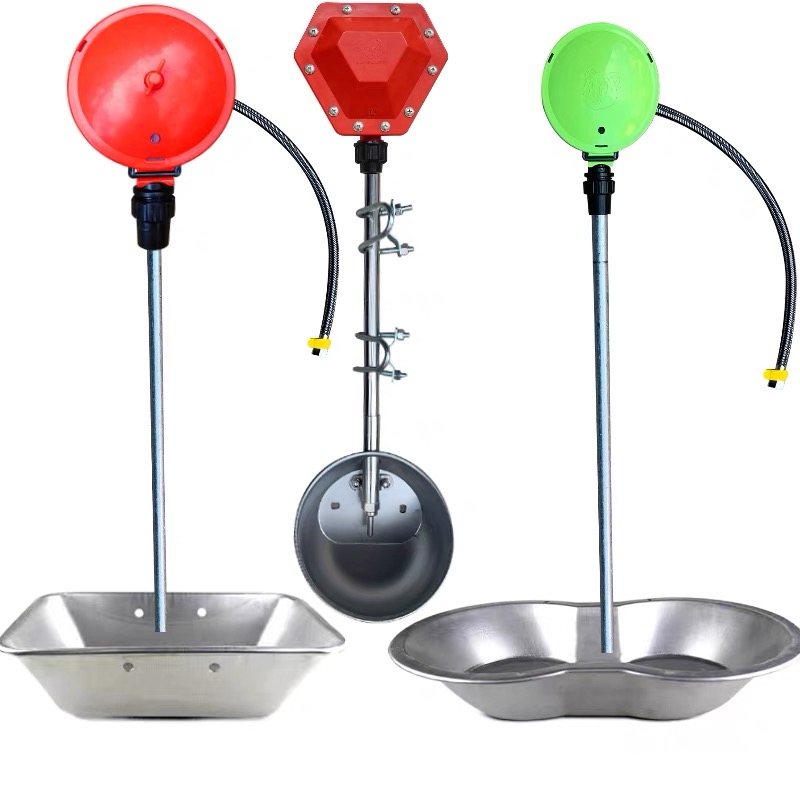

Pig water line regulator

Function:

Pressure reduction and stabilization: The regulator reduces the incoming pressure to a desired outlet pressure through regulation, and relies on the energy of the medium itself to automatically maintain stable outlet pressure. This is crucial for protecting the waterline system and confirming the normal operation of the water dispenser

Display water level: Some regulators are also equipped with water level display tubes, which can clearly and easily display the water level, making it convenient for aquaculture personnel to monitor

Technical parameters:

Working pressure: The working pressure range of the regulator is usually between 0.1-0.4MPa, depending on the product model

Water output: Under specific water pressure, there are clear regulations on the water output of the regulator. For example, the BMR-I regulator has a working water output of 20kg/min and a backwash water output of 35kg/min when the water pressure is 0.1Mpa

Applicable drinking water pipe diameter: Pressure regulators are usually suitable for various diameters of drinking water pipes, such as 25mm, 26.6mm, and square pipes.

Installation and use:

Installation steps: The installation of a regulator usually includes steps such as inserting the water level display tube into the water level tube socket, connecting the drinking water pipe, and fixing the regulator. The specific installation method needs to be carried out according to the product manual

Attention to use: When using a pressure regulator, it is necessary to confirm that the water pressure is within the specified range and regularly check the working status and water level display of the regulator

Accessories

Common accessories:

Water level display tube: used to display the water level inside the regulator for easy monitoring by aquaculture personnel

Water receiving bowl/drinking bowl: installed below the regulator, used to receive water flowing out of the regulator for pigs to drink

PVC reinforced hose: used to connect pressure regulators and drinking bowls, with appropriate margin to prevent pigs from biting

Copper connector: used to connect PVC hoses and drinking bowls, ensuring that the connection is sealed and leak proof

Expansion screws, top screw buckles, and other fasteners: used to fix regulators, drinking bowls, etc. to walls or railings

Selection and use:

Select according to the needs of the pig farm: Choose the appropriate regulator and accessories based on factors such as the scale of the pig farm, the number of pigs, and the demand for drinking water

Confirm the quality of accessories: Choose high-quality and practical accessories to reduce maintenance and replacement costs

Regular maintenance: Regularly check the working status of the regulator and accessories, clean and replace damaged accessories in a timely manner, and confirm that pigs can obtain clean drinking water stably and safely
